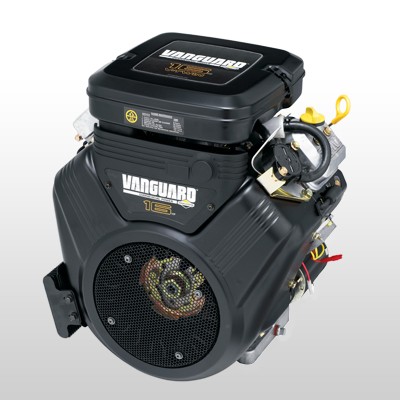

14-16 HP VANGUARD Petrol Engine

Features Benefits
Oil Gard® Low Oil Shutdown System Significantly reduces the chance of engine damage due to insufficient lubrication
Engine Warranty Two year commercial engine warranty for all applications
Dura-Bore Cast Iron Cylinder Sleeve Assures long engine life and improved oil control
V-Twin OHV Technology Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
Cooler Cleaner Technology (efficient fan, improved debris management) Efficiently reduces engine and oil temperatures by 25-30 degrees while effectively managing airborne debris
Lubrication
Oil Drain Convenient drain locations for trouble-free maintenance
Full Pressure Lubrication w/ Spin-On Oil Filter Cleans oil and protects engine components to ensure maximum lubrication and long life
Pressure Regulated Full Flow Oil Filtration Keeps oil clean longer, extends time between oil changes and extends bearing life
Centrally Located Oil Pump and Pickup Faster priming and allows for a higher angle of operation
Oil Dipstick Provides easy access to check oil levels
Mechanical
Dual Clean Air Cleaner Industrial Pleated paper with foam pre-cleaner for extended engine life
Modern Light Weight Pistons w/ Optimized Compliant Ring Package Lowers noise, oil consumption, emissions and reduces wear
Mechanical Governor Improved speed control and more available power
Magnetron® Electronic Ignition Quick dependable starts with no maintenance required
Mechanical Compression Release Smooth easy starting, longer starter life and provides an instant return to maximum power
Simulated Dynamic Crankshaft Balance Techniques Improves engine vibration
High Efficiency Head Design Angled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power
New Idle Down (H/S only)* Automatically lowers RPM when power not required. Results in lower fuel consumption and lower noise.
*Idle down feature available on engines with fixed speed mechanical governing per 866Y-5.
Sound
Phase Modulated Flywheel Fan   Lowers noise level and improves sound quality
Acoustically Contoured Crankcase
Poly-Core Blower Housing
Lo-Tone Muffler
Engine Dimensions
Dimensions (LxWxH) 10.98 in (279 mm) x 16.14 in (410 mm) x 17.24 in (438 mm)
Vertical Dimensions (LxWxH) 16.89 in (429 mm) x 15.91 in (404 mm) x 12.20 in (310 mm)
Weight 72 lbs (32.7 kg)
Oil Capacity 57.5oz (1.7L)
Engine Displacement 479 cc (29.23 cu in)
Engine Specifications
Gross Horsepower* 14-16 Gross HP
Engine Displacement 479 cc (29.23 cu in)
Number of Cylinders Two
Engine Configuration Vertical or Horizontal Shaft
Bore 2.68 in (68 mm)
Stroke 2.60 in (66 mm)
Compression Ratio 8.2:1
Ignition System Magnetron®
Lubrication System Full Pressure w/ Spin On Oil Filter
Carburetor Single Barrel Float Feed
Engine Cooling Air
Engine Fuel Gasoline or Gaseous
Governor Mechanical
PTO (Standard) 1″ SAE Keyway (See Options Tab) (See Options Tab)
Cylinder Block Aluminum Alloy with Dura-Bore Cast Iron Sleeve
Crankshaft Ductile Iron
PTO Shaft Rotation Counterclockwise from PTO Side
Starter Rewind or Electric
