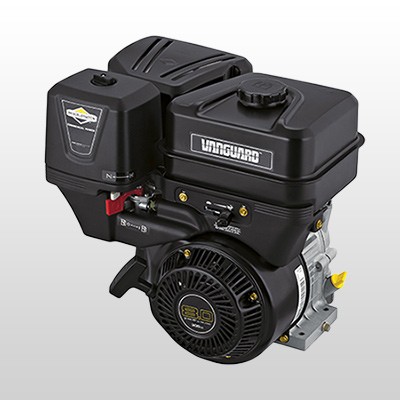

9 HP VANGUARD Petrol Engine

Features Benefits
TransportGuard™ System Simultaneous fuel/ignition shut-off protects the engine from oil/fuel dilution during transport
Overhead Valve Design Runs cooler and cleaner delivering more power, longer engine life and improved fuel economy
Commercial-style Carburertor Additional fuel passages ensure reliable starting and smooth running operation at a wide range loads
Large, Efficient Sediment Filter Sediment is collected in a large, clear bowl and is drained using a convenient tool-free valve
All-metal Fuel Tank Reduces emissions and is mounted directly to the engine block to enhance durability
Engine Warranty Two year commercial engine warranty for all applications
Lubrication
Motorsports Rod/Dipper Design Efficiently improves oil flow throughout the engine; assures maximum protection of internal components
Oil Sensor Automatically shuts down the engine in low oil situations to safeguard investment
Splash Lubrication System Delivers superior lubrication to the engine to ensure long life and reliability
Mechanical
High-mounted Canister-style Air Cleaner 22% more filter area than the competition; water-repellent filter with innovative triple seal design dramatically decreases dirt, dust and debris intake
Magnetron® Electronic Ignition Quick dependable starts with no maintenance required
Larger Ignition Coil Assures fast, easy starts
Innovative Combustion Chamber Improves air and fuel flow, resulting in a cleaner burn, reduced emissions and increased horsepower
Cylinder Head and Head Gasket Increases power, stability and torque retention
Forged Crankshaft Incorporates heat-treated ball bearings to minimize friction and heat build-up
Engine Dimensions
Dimensions (LxWxH) 12.48 in (317 mm) x 16.42 in (417 mm) x 15.98 in (406 mm)
Weight 57.1 lbs (25.9 kg)
Fuel Tank Capacity 3.7 L
Oil Capacity 28oz (0.8L)
Engine Displacement 305 cc (18.61 cu in)
Engine Specifications
Gross Horsepower* 9 Gross HP
Engine Displacement 305 cc (18.61 cu in)
Number of Cylinders One
Engine Configuration Horizontal
Bore 3.12 in (79 mm)
Stroke 2.44 in (62 mm)
Compression Ratio 8.1:1
Ignition System Magnetron®
Lubrication System Splash
Carburetor Single Barrel Float Feed
Engine Cooling Air
Engine Fuel Gasoline
Governor Mechanical
PTO (Standard) 1″ SAE Keyway
Cylinder Block Aluminum with Cast Iron Sleeve
Crankshaft Forged
PTO Shaft Rotation Counterclockwise from PTO side
Starter Rewind or Electric
