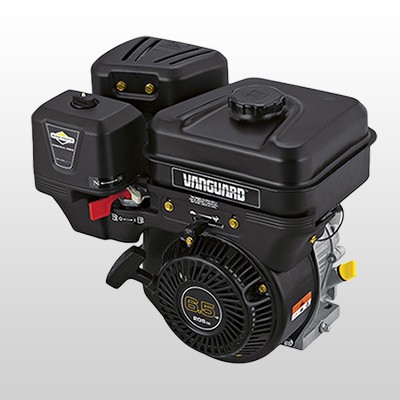

6 HP VANGUARD Petrol Engine

Horsepower* 5.5-6.5 Gross HP
Engine Displacement 205 cc (12.51 cu in)
Number of Cylinders One
Engine Configuration Horizontal
Bore 2.69 in (68 mm)
Stroke 2.20 in (56 mm)
Compression Ratio 8.3:1
Ignition System Magnetron®
Lubrication System Splash
Carburetor Single Barrel Float Feed
Engine Cooling Air
Engine Fuel Gasoline
Governor Mechanical
PTO (Standard) 3/4″ SAE Keyway
Cylinder Block Aluminum with Cast Iron Sleeve
Crankshaft Forged
PTO Shaft Rotation Counterclockwise from PTO side
Starter Rewind
