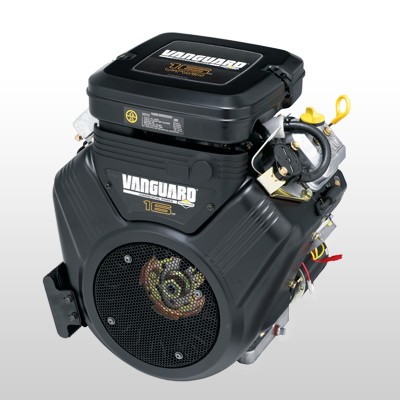

14-16 HP Vanguard Petrol Engine

Add to compare
SKU: 398 Categories: ,


Oil Gard® Low Oil Shutdown SystemSignificantly reduces the chance of engine damage due to insufficient lubrication
Engine WarrantyTwo year commercial engine warranty for all applications
Dura-Bore Cast Iron Cylinder SleeveAssures long engine life and improved oil control
V-Twin OHV TechnologySuperior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
Cooler Cleaner Technology (efficient fan, improved debris management)Efficiently reduces engine and oil temperatures by 25-30 degrees while effectively managing airborne debris
Oil DrainConvenient drain locations for trouble-free maintenance
Full Pressure Lubrication w/ Spin-On Oil FilterCleans oil and protects engine components to ensure maximum lubrication and long life
Pressure Regulated Full Flow Oil FiltrationKeeps oil clean longer, extends time between oil changes and extends bearing life
Centrally Located Oil Pump and PickupFaster priming and allows for a higher angle of operation
Oil DipstickProvides easy access to check oil levels
Dual Clean Air CleanerIndustrial Pleated paper with foam pre-cleaner for extended engine life
Modern Light Weight Pistons w/ Optimized Compliant Ring PackageLowers noise, oil consumption, emissions and reduces wear
Mechanical GovernorImproved speed control and more available power
Magnetron® Electronic IgnitionQuick dependable starts with no maintenance required
Mechanical Compression ReleaseSmooth easy starting, longer starter life and provides an instant return to maximum power
Simulated Dynamic Crankshaft Balance TechniquesImproves engine vibration
High Efficiency Head DesignAngled ports optimizes tumble and mixture preparation for improved efficiency, smoother idle, lower emissions and more power
New Idle Down (H/S only)*Automatically lowers RPM when power not required. Results in lower fuel consumption and lower noise.
*Idle down feature available on engines with fixed speed mechanical governing per 866Y-5.
Phase Modulated Flywheel Fan  Lowers noise level and improves sound quality
Acoustically Contoured Crankcase
Poly-Core Blower Housing
Lo-Tone Muffler
Engine Dimensions
Dimensions (LxWxH)10.98 in (279 mm) x 16.14 in (410 mm) x 17.24 in (438 mm)
Vertical Dimensions (LxWxH)16.89 in (429 mm) x 15.91 in (404 mm) x 12.20 in (310 mm)
Weight72 lbs (32.7 kg)
Oil Capacity57.5oz (1.7L)
Engine Displacement479 cc (29.23 cu in)
Engine Specifications
Gross Horsepower*14-16 Gross HP
Engine Displacement479 cc (29.23 cu in)
Number of CylindersTwo
Engine ConfigurationVertical or Horizontal Shaft
Bore2.68 in (68 mm)
Stroke2.60 in (66 mm)
Compression Ratio8.2:1
Ignition SystemMagnetron®
Lubrication SystemFull Pressure w/ Spin On Oil Filter
CarburetorSingle Barrel Float Feed
Engine CoolingAir
Engine FuelGasoline or Gaseous
PTO (Standard)1″ SAE Keyway (See Options Tab) (See Options Tab)
Cylinder BlockAluminum Alloy with Dura-Bore Cast Iron Sleeve
CrankshaftDuctile Iron
PTO Shaft RotationCounterclockwise from PTO Side
StarterRewind or Electric
