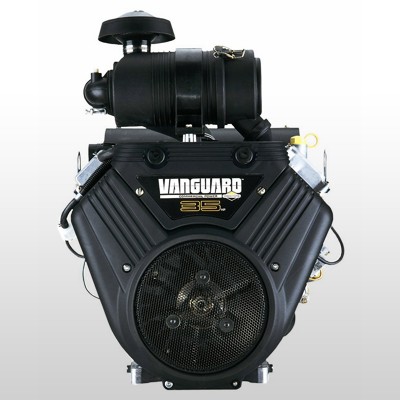

27-31 HP Vanguard Petrol Engine

Add to compare
SKU: 402 Categories: ,


Engine Specifications
Gross Horsepower*25-31 Gross HP
Engine Displacement896 cc (54.68 cu in)
Number of CylindersTwo
Engine ConfigurationHorizontal
Bore3.37 in (86 mm)
Stroke3.07 in (78 mm)
Compression Ratio8.2:1
Ignition SystemMagnetron®
Lubrication SystemFull Pressure w/ Spin On Oil Filter
CarburetorTwo Barrel Float Feed
Engine CoolingAir
Engine FuelGasoline or Gaseous
PTO (Standard)1 1/8″ SAE Keyway (See Options Tab)
Cylinder BlockAluminum Alloy with Dura-Bore Cast Iron Sleeve
CrankshaftDuctile Iron
PTO Shaft RotationCounterclockwise from PTO Side
StarterIndustrial Grade Solenoid Shift El
