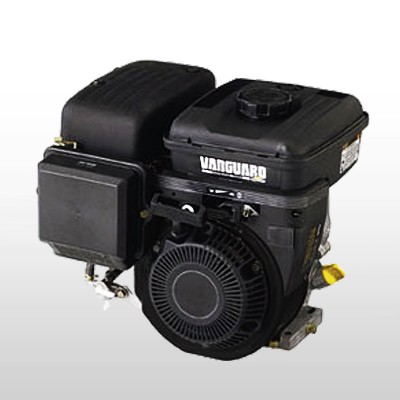

4 HP VANGUARD Petrol Engine

Engine Specifications
Gross Horsepower* 4 Gross HP
Engine Displacement 127 cc (7.75 cu in)
Number of Cylinders One
Engine Configuration Horizontal
Bore 2.44 in (62 mm)
Stroke 1.65 in (42 mm)
Compression Ratio 8.5:1
Ignition System Magnetron®
Lubrication System Splash
Carburetor Single Barrel Float Feed
Engine Cooling Air
Engine Fuel Gasoline
Governor Mechanical
PTO (Standard) 3/4″ SAE Keyway (See Options Tab)
Cylinder Block Aluminum with Cast Iron sleeve
Crankshaft Forged
PTO Shaft Rotation Counterclockwise from PTO Side
Starter Rewind or Electric
