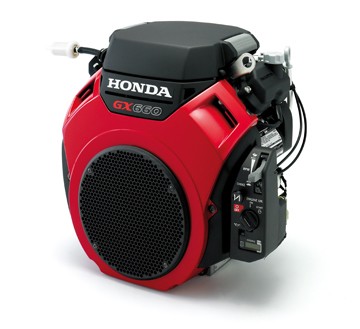

Honda GX690 27HP Petrol Engine

Engine Type Air cooled 4 stroke OHV petrol engine, 90° V-twin design, horizontal shaft
Cylinder Sleeve Type Cast Iron Sleeve
Bore x Stroke78 x 72mm
Displacement 688 cm3
Compression9.3 : 1
Net Power 16.5 Kw (22.1 HP) / 3600 rpm)
Cont. rated power 11.5 kW (15.4 HP) / 3000 rpm
13.0 kW (17.4 HP) / 3600 rpm
Max net torque 48.3 Nm / 4.93 Kgm / 2500 rpm
Ignition System CDI
Starting System Electric Starter
Fuel cons. at rated power6.7 L/hr – 3600 rpm
Engine Oil Capacity1.9 l
Dimensions
(L x W x H)
429 x 410 x 438 mm
Dry Weight 44.6 kg
