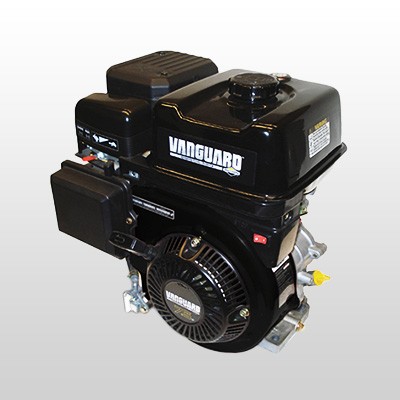

7.5 VANGUARD Petrol Engine

Engine Specifications
Gross Horsepower* 7.5 Gross HP
Engine Displacement 216 cc (13.18 cu in)
Number of Cylinders One
Engine Configuration Horizontal
Bore 2.83 in (72 mm)
Stroke 2.09 in (53 mm)
Compression Ratio 8.8:1
Ignition System Magnetron®
Lubrication System Splash
Carburetor Single Barrel Float Feed
Engine Cooling Air
Engine Fuel Gasoline
Governor Mechanical
PTO (Standard) 1″ SAE Keyway (See Options Tab)
Cylinder Block Aluminum with Cast Iron sleeve
Crankshaft Forged
PTO Shaft Rotation Counterclockwise from PTO Side
Starter Rewind
