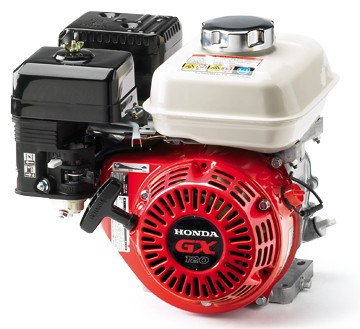

Honda GX120 Petrol Engine

Engine Type Air cooled 4 stroke OHV petrol engine, 25° inclined cylinder, horizontal shaft
Cylinder Sleeve Type Cast Iron Sleeve
Bore x Stroke 60 x 42mm
Displacement 118 cm3
Compression 8.5 : 1
Net Power 2.6 Kw (3.5 HP) / 3600 rpm)
Cont. rated power 1.8 kW (2.4 HP) / 3000 rpm
2.1 kW (2.8 HP) / 3600 rpm
Max net torque 7.3 Nm / 0.74 Kgm / 2500 rpm
Ignition System Transistorised
Starting System Recoil
Fuel tank Capacity 2.00 l
Fuel cons. at rated power 1 L/hr – 3600 rpm
Engine Oil Capacity 0.6 l
Dimensions
(L x W x H)
305 x 341 x 329 mm
Dry Weight 13 kg
