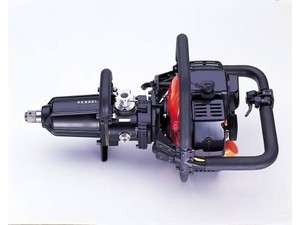

IMPACT WRENCH GT3500

•2.5 hp 2-Stroke Forced, Air-Cooled, Single Cylinder full-crank Tanaka engine
•Versatility of applications due to –
•No nonsense two-stroke maintenance
•Best power-to-weight ratio with
•Reduction Gearbox
•Complete portability – No Generators, Electrical Cables, Battery Chargers, or Pneumatic Hose Lines required
•Able to be Operated at Any Angle
•Fingertip Controls
•Rubbergrip Handles
•Well-balanced for Operator Comfort
•Carry Case Included
•Designed and Manufactured by Japan’s Finest Engineers
•Security and peace of mind with
•Comprehensive Spare Parts Range available

Part Specification
Engine Tanaka
Type Two-Stroke Forced Air Cooled Single Cylinder
Displacement (cc) 46.5
Max hp 2.5
Max kW 1.85
Starting System Recoil
Ignition Electronic
Carburettor Diaphragm with Injection and Primer
Fuel Capacity (cc) 1000
Gearbox Reduction
Reverse Yes
Clutch System Centrifugal
Muffler System Spark Arrestor
Idling rpm 2700
Loaded Impact rpm 7120
Non-loaded max epm 9880
Square Drive Socket Size 25.4mm (1″)
Fastening Torque Range 800 – 1030 N.m 590-760 ft.lbf
Free Speed rpm 1200
Capacity Bolt Diameter (cm/in) 3.2cm (1 1/4″)
Unit Dimensions:
Impact Wrench: WxLxH 700mm
Dry Weight kgs/lbs (dry) 19.50/42.99
Guppy Carry Case Standard
Guppy Carry Case: WxLxH 450mm/920mm/430mm
Weight (kgs/lbs) 6/13.2
